REST Services with Django

Learning Objectives

  • Understand what a REST service is
  • Create a simple REST service with Django

Agenda

  • REST
  • Django
  • Models
  • Django REST framework
  • Filters

Resources

REST Diagram

HTTP Method Diagram

URL Diagram

HTTP Status Diagram

HTTP Overview

An overview of HTTP, MDN

HTTP Methods

4 out of the 9 HTTP methods:

  • GET: show something.
  • POST: add something.
  • DELETE: remove something.
  • PATCH: modify something.

HTTP Headers

HTTP/1.1 200 OK
Date: Sat, 09 Oct 2010 14:28:02 GMT
Server: Apache
Last-Modified: Tue, 01 Dec 2009 20:18:22 GMT
ETag: "51142bc1-7449-479b075b2891b"
Accept-Ranges: bytes
Content-Length: 29769
Content-Type: text/html

<!DOCTYPE html...

Additional key-value pairs passed with a request or response.

HTTP Status Ranges

HTTP Status

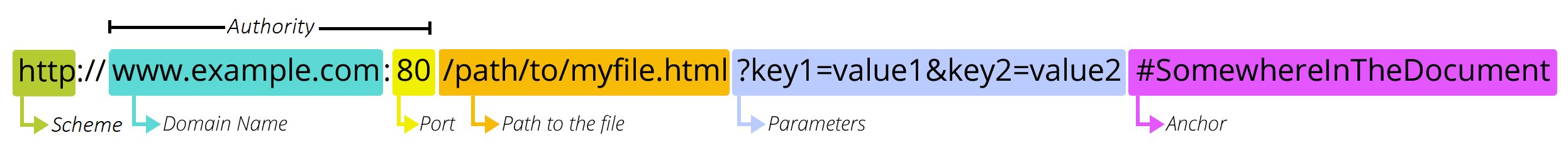

URL

Read more: What is an URL?, MDN

REST Principles

4 of the 6 principles:

  • Client-server separation.
  • Uniform: use standard protocols and formats: HTTP, URI, and very often JSON.
  • Stateless: each request is self-contained and does not depend on prior requests.
  • Cachable: responses include cache-control information.

REST Simplified

Beginners can assume a REST API means an HTTP service that can be called using standard web libraries and tools.

— REST, MDN

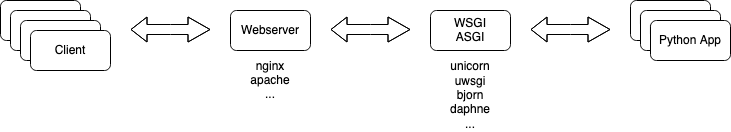

WSGI/ASGI

  • Python web frameworks are often WSGI/ASGI applications
  • Most frameworks are invoked per request

Setting up a Python Environment (Linux, MacOS)

  • Virtual environment can be created with the built-in venv module
mkdir webservice
cd webservice
python3 -m venv env
env/bin/python --version
env/bin/pip list
env/bin/pip install django

Setting up a Python Environment (Windows)

  • On windows, you should use Scripts instead of bin and might to use backslashes and/or python or py:
mkdir webservice
cd webservice
py -m venv env
env\Scripts\python --version
env\Scripts\pip list
env\Scripts\pip install django

Django

  • Model - Template - View
  • Free and open source
  • Much “magic”
  • Old (15 years) but still new features (ASGI)
  • Often used, lot of extensions
  • One project, many apps

Django Admin

  • The django admin CLI provides skeletons for projects and apps
env/bin/django-admin --help
env/bin/django-admin startproject --help
env/bin/django-admin startproject webservice .
env/bin/django-admin startapp shop

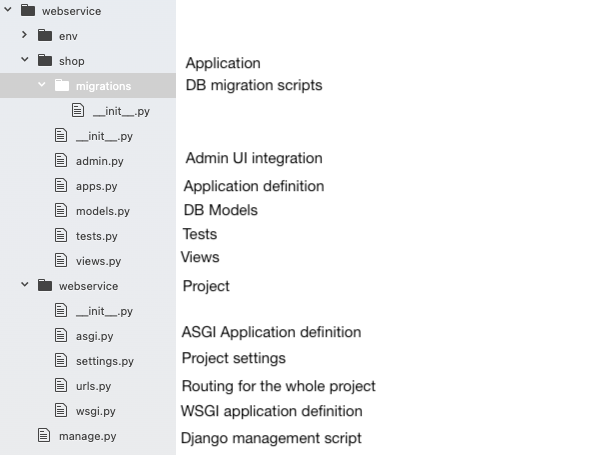

Typical Structure of a Django Project

Django Management

  • The django managment script provides commands for database migration, debug server, etc.
  • It’s possible to define your own commands as well
env/bin/python manage.py --help
env/bin/python manage.py migrate
env/bin/python manage.py createsuperuser
env/bin/python manage.py runserver

Exercise 1

  • Create a python environment and a django project and app.
  • Register your app in the settings.
  • Initialize the DB and add a superuser.
  • Update the gitignore to ignore the env and the pycache directories
  • Add a README which explains how to set up the project.

A Simple REST Service with Django

  • In Django, every endpoint has its own view (function or class method)
  • Views are mapped to an URL with a route

Views

  • Views are functions which take a request and return a response
from django.http import JsonResponse

def view_article(request):
    return JsonResponse({
        'id': 1,
        'name': 'Screwdriver'
    })

Routing: Application

  • Application URLs defined for every view (shop.urls)
from django.urls import path
from shop.views import view_article

urlpatterns = [
    path('articles/1/', view_article),
]

Routing: Project

  • All application URLs can be included at an endpoint (webservice.urls)
from django.contrib import admin
from django.urls import include, path

urlpatterns = [
    path('admin/', admin.site.urls),
    path('shop/', include('shop.urls')),
]

Routing: Patterns

  • Routing consists of patterns
  • Variable parts are passed as arguments
urlpatterns = [
    path('articles/<int:id>/', view_article),
]
def view_article(request, id):
    return JsonResponse({
        'id': id,
        'name': 'Screwdriver'
    })

Request Method

  • The request object contains all information about the current request
  • The method is available through the request as string
def view_article(request, id):
    if request.method == 'GET':
        pass
  • In this case, we need to disable the CsrfViewMiddleware for POST, PATCH and DELETE

Parsing JSON

  • The body of the request may contain JSON
from json import loads

def view_article(request, id):
    data = loads(request.body)

Returning HTTP Status Codes

  • There are responses for every status code
from django.http import HttpResponseNotAllowed

def view_article(request, id):
    return HttpResponseNotAllowed(['GET', 'POST'])

Recall: Fetch API (GET)

fetch("https://api.quotable.io/random")
    .then((response) => {
        console.log("HTTP Response status: " + response.status);
        return response.json();
    })
    .then((data) => console.log(data));

Recall: Fetch API (POST)

const data = {
    /*... */
};
fetch("/shop/articles", {
    method: "POST", // *GET, POST, PUT, DELETE, etc.
    body: JSON.stringify(data),
})
    .then((response) => response.json())
    .then((data) => console.log(data));

Read more: Using Fetch, MDN

Exercise 2

  • Create a simple static REST service.
  • Add a GET method for all articles and return some fictional IDs
  • Add a POST method for all articles and return the given data and a fictional ID
  • Add a GET method for one article and return the ID
  • Add a PATCH method for one article and return the ID and the given data
  • Add a DELETE method for an article and return the ID
  • Return a HTTP 405 for other cases
  • Test the views with curl

Django Models

  • Django has its own object-relational mapper (ORM)
  • Requests are normally NOT bound to a transaction but immediately commited
  • Some DB interactions may need an atomic decorator/context manager
  • File: shop/models.py
from django.db.models import Model
from django.db.models import CharField


class Article(Model):
    name = CharField(max_length=50)
  • Every model gets automatically an auto-incremented id!

Fields

  • Django provides a lot of different DB fields, more are available using additional libraries
  • Boolean: BooleanField
  • Text: CharField, TextField, EmailField, URLField, UUIDField, FilePathField
  • Numbers: IntegerField, FloatField, DecimalField
  • JSON: JSONField
  • Files: FileField, ImageField
  • Date & Time: DurationField, DateField, DateTimeField, TimeField
  • Relationships: ForeignKey, ManyToManyField, OneToOneField

Querying (1)

  • Django allows DB interaction using the objects property of any model
  • Creating new objects
article = Article.objects.create(name=name)
article.save()
  • Querying all objects
articles = Article.objects.all()
articles = Article.objects.all()[:5]

Querying (2)

  • Ordering
articles = Article.objects.order_by('name').all()[:5]
articles = Article.objects.order_by('-name').all()[:5]
  • Querying one object (get will return an exception if not found, first None)
article = Article.objects.filter(id=id).get()
article = Article.objects.filter(id=id).first()

Querying (3)

  • Modifying an object
article = Article.objects.filter(id=id).get()
article.name = name
article.save()
  • Deleting an object
article = Article.objects.filter(id=id).get()
article.name = name
article.save()
article.delete()

Migrations

  • Djangos migration management is reason alone to chose it! It supports automatic migration script creation and historical models!
env/bin/python manage.py makemigrations
env/bin/python manage.py migrate

Admin UI

  • Models can be registered and are then available at the admin UI
  • File: shop/admin.py
from django.contrib.admin import ModelAdmin, register
from shop.models import Article

@register(Article)
class ArticelAdmin(ModelAdmin):
    pass

Exercise 3

  • Define a database model for the articles
  • Create the migration script and migrate the database
  • Use the model in the views
  • Register the model for the admin UI
  • Return a 404 if the article with a given ID does not exist

Django REST framework

  • Django REST framework is a django extension for easily creating REST APIs
  • Browsable API: http://127.0.0.1:8000/

Installing Packages Using a Textfile

  • pip allows installation from a text file
env/bin/pip install -r requirements.txt
  • it’s possible to pin version
django==3.2.4
djangorestframework

Set up the Django REST framework

  • Install
env/bin/pip install djangorestframework
  • Enable
INSTALLED_APPS = [
    ...
    'rest_framework',
]

View Sets

  • Viewsets are classes which provide CRUD operations for models
  • File shop/views.py
from shop.models import Article
from shop.serializers import ArticleSerializer
from rest_framework.viewsets import ModelViewSet


class ArticleViewSet(ModelViewSet):
    queryset = Article.objects.all()
    serializer_class = ArticleSerializer

Serializers

  • Serializers define the data format of a model for requests and responses
  • File: shop/serializers.py
from shop.models import Article
from rest_framework.serializers import HyperlinkedModelSerializer

class ArticleSerializer(HyperlinkedModelSerializer):

    class Meta:
        model = Article
        fields = ['id', 'name']
        read_only_fields = ['id']

Routing: Routers

  • Routers register all CRUD operations for viewsets
  • File: shop/urls.py
from shop.views import ArticleViewSet
from rest_framework.routers import DefaultRouter

router = DefaultRouter()
router.register('articles', ArticleViewSet)
urlpatterns = router.urls

Exercise 4

  • Install the Django REST framework
  • Add a serializer for your model
  • Replace your own views with a viewset
  • Test the API with the browsable API

Filtering

  • Query parameters are often used for ordering and filtering
https://duckduckgo.com/?t=ffab&q=query+parameters&ia=web
  • Django filters allows filtering with query parameters together with the REST framework

Setting up Django Filters

  • install
env/bin/pip install django-filter
  • enable and configure
INSTALLED_APPS = [
    ...
    'django_filters',
]

REST_FRAMEWORK = {
    'DEFAULT_FILTER_BACKENDS': [
        'django_filters.rest_framework.DjangoFilterBackend'
    ]
}

Filter Sets

  • Filter sets are classes which define filters for models
  • File shop/filters.py
from django_filters import FilterSet
from shop.models import Article

class ArticleFilter(FilterSet):

    class Meta:
        model = Article
        fields = ['category']

View Sets with Filters

  • Filtersets can be added to view sets
  • File: shop/views.py
from shop.filters import ArticleFilter
from shop.models import Article
from shop.serializers import ArticleSerializer
from rest_framework.viewsets import ModelViewSet


class ArticleViewSet(ModelViewSet):
    queryset = Article.objects.all()
    serializer_class = ArticleSerializer
    filterset_class = ArticleFilter

Exercise 5

  • Install django-filter
  • Add categories to your model
  • Add a filter to your viewset for filtering by category
  • Test the filters with the browsable API

Pagination

  • Pagination can be enabled in settings.py
REST_FRAMEWORK = {
    ...
    'DEFAULT_PAGINATION_CLASS': 'rest_framework.pagination.LimitOffsetPagination',
    'PAGE_SIZE': 5
}

What’s next?
